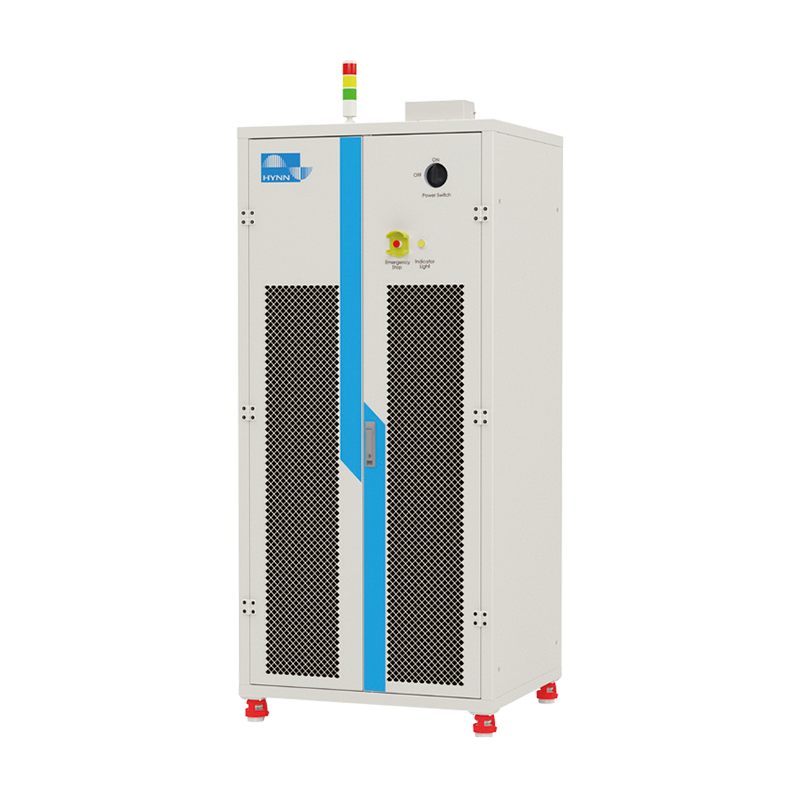

5V High Precision Battery Testing LabEquipment

This equipment is independently developed by HYNN and is tailored for laboratory battery cell needs. It has complete protection measures, such as input over-voltage and under-voltage, output overload, battery reverse connection, voltage upper and lower limits, over-temperature, current tolerance, trend protection, etc.

5V High Precision Battery Testing LabEquipment

This equipment is independently developed by HYNN and is tailored for laboratory battery cell needs. It has complete protection measures, such as input over-voltage and under-voltage, output overload, battery reverse connection, voltage upper and lower limits, over-temperature, current tolerance, trend protection, etc.

产品特点

Product Features
Product Features

规格参数

Parameters
Parameters
  • Model :
    DECT5300A-3000A
  • Channel quantity :
    1~32CH or Adjustable
  • Voltage accuracy :
    ±0.02%FS
  • Voltage resolution :
    0.1mV
  • Current accuracy :
    ±0.05%FS (Grading: 75A/Grade)
  • Current resolution :
    0.1mA
  • Charging output voltage range :
    0~5V
  • Dis-charging input voltage range :
    1.5~5V (0V Adjustable)
  • Current response :
    2ms (10%~90%)
  • High speed sampling :
    1ms
  • Charging peak efficiency :
    83%
  • Dis-charging peak efficiency :
    78%
  • Auxiliary channels :
    Voltage / Temperature / Pressure Sensor
  • Auxiliary channels voltage sampling board :
    Sampling voltage 0V~+6V, Deviation ≤±2mV, Resolution rate 0.01mV
  • Auxiliary channels temperature sampling board :
    Range -40℃~120℃, Deviation ≤±1℃, Resolution 0.1℃
  • Device input voltage :
    380V3P
  • Equipment working environment temperature :
    -10℃~35℃
  • Model :
    DECT5300A-3000A
  • Channel quantity :
    1~32CH or Adjustable
  • Voltage accuracy :
    ±0.02%FS
  • Voltage resolution :
    0.1mV
  • Current accuracy :
    ±0.05%FS (Grading: 75A/Grade)
  • Current resolution :
    0.1mA
  • Charging output voltage range :
    0~5V
  • Dis-charging input voltage range :
    1.5~5V (0V Adjustable)
  • Current response :
    2ms (10%~90%)
  • High speed sampling :
    1ms
  • Charging peak efficiency :
    83%
  • Dis-charging peak efficiency :
    78%
  • Auxiliary channels :
    Voltage / Temperature / Pressure Sensor
  • Auxiliary channels voltage sampling board :
    Sampling voltage 0V~+6V, Deviation ≤±2mV, Resolution rate 0.01mV
  • Auxiliary channels temperature sampling board :
    Range -40℃~120℃, Deviation ≤±1℃, Resolution 0.1℃
  • Device input voltage :
    380V3P
  • Equipment working environment temperature :
    -10℃~35℃
  • Model :
    DECT5300A-3000A
  • Channel quantity :
    1~32CH or Adjustable
  • Voltage accuracy :
    ±0.02%FS
  • Voltage resolution :
    0.1mV
  • Current accuracy :
    ±0.05%FS (Grading: 75A/Grade)
  • Current resolution :
    0.1mA
  • Charging output voltage range :
    0~5V
  • Dis-charging input voltage range :
    1.5~5V (0V Adjustable)
  • Current response :
    2ms (10%~90%)
  • High speed sampling :
    1ms
  • Charging peak efficiency :
    83%
  • Dis-charging peak efficiency :
    78%
  • Auxiliary channels :
    Voltage / Temperature / Pressure Sensor
  • Auxiliary channels voltage sampling board :
    Sampling voltage 0V~+6V, Deviation ≤±2mV, Resolution rate 0.01mV
  • Auxiliary channels temperature sampling board :
    Range -40℃~120℃, Deviation ≤±1℃, Resolution 0.1℃
  • Device input voltage :
    380V3P
  • Equipment working environment temperature :
    -10℃~35℃
  • Model :
    DECT5300A-3000A
  • Channel quantity :
    1~32CH or Adjustable
  • Voltage accuracy :
    ±0.02%FS
  • Voltage resolution :
    0.1mV
  • Current accuracy :
    ±0.05%FS (Grading: 75A/Grade)
  • Current resolution :
    0.1mA
  • Charging output voltage range :
    0~5V
  • Dis-charging input voltage range :
    1.5~5V (0V Adjustable)
  • Current response :
    2ms (10%~90%)
  • High speed sampling :
    1ms
  • Charging peak efficiency :
    83%
  • Dis-charging peak efficiency :
    78%
  • Auxiliary channels :
    Voltage / Temperature / Pressure Sensor
  • Auxiliary channels voltage sampling board :
    Sampling voltage 0V~+6V, Deviation ≤±2mV, Resolution rate 0.01mV
  • Auxiliary channels temperature sampling board :
    Range -40℃~120℃, Deviation ≤±1℃, Resolution 0.1℃
  • Device input voltage :
    380V3P
  • Equipment working environment temperature :
    -10℃~35℃
  • Model :
    DECT5300A-3000A
  • Channel quantity :
    1~32CH or Adjustable
  • Voltage accuracy :
    ±0.02%FS
  • Voltage resolution :
    0.1mV
  • Current accuracy :
    ±0.05%FS (Grading: 75A/Grade)
  • Current resolution :
    0.1mA
  • Charging output voltage range :
    0~5V
  • Dis-charging input voltage range :
    1.5~5V (0V Adjustable)
  • Current response :
    2ms (10%~90%)
  • High speed sampling :
    1ms
  • Charging peak efficiency :
    83%
  • Dis-charging peak efficiency :
    78%
  • Auxiliary channels :
    Voltage / Temperature / Pressure Sensor
  • Auxiliary channels voltage sampling board :
    Sampling voltage 0V~+6V, Deviation ≤±2mV, Resolution rate 0.01mV
  • Auxiliary channels temperature sampling board :
    Range -40℃~120℃, Deviation ≤±1℃, Resolution 0.1℃
  • Device input voltage :
    380V3P
  • Equipment working environment temperature :
    -10℃~35℃
